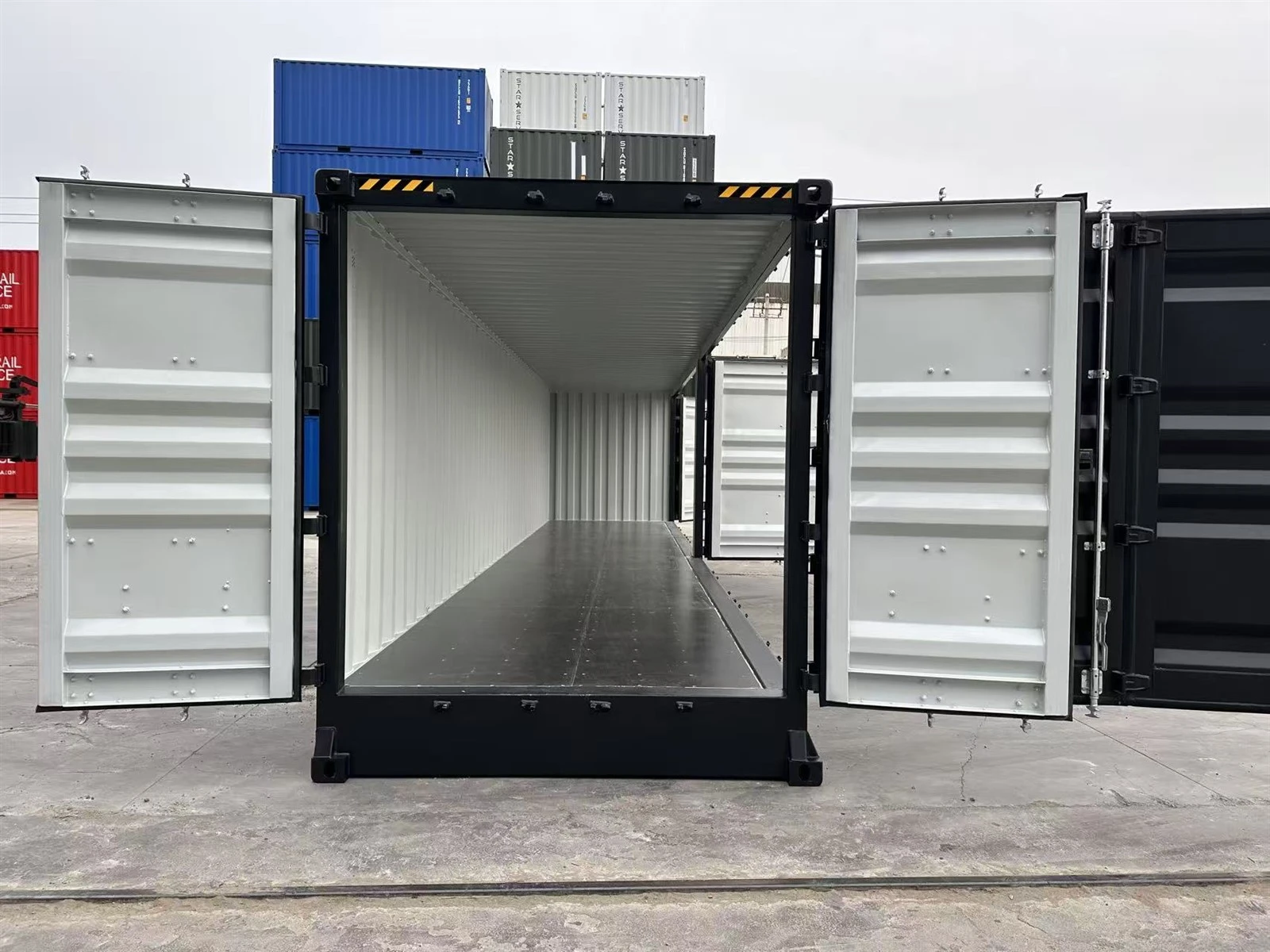

The 40ft High Cube Full Side Opening Container is a multifunctional special container upgraded from the standard 40ft High Cube (40HQ). Built to ISO international standard dimensions, it retains the advantage of a 9-foot-6-inch ultra-high capacity, while removing side wall pillars and featuring a full-length, full-side opening. Combining large-volume storage with efficient, all-round loading/unloading, it is the preferred choice for overlength cargo transport, bulk goods handling, and modular space conversion.
Core Specifications
Dimensions (ISO Standard)
External Dimensions: 12,192mm × 2,438mm × 2,896mm
Internal Dimensions: 12,032mm × 2,340mm × 2,700mm
Side Opening Dimensions: Approx. 11,840mm × 2,590mm (pillarless, full-side access)
Rear Door Dimensions: 2,358mm × 2,388mm (standard sealed rear door)
Container Volume: Approx. 72.2m³
Weight Specifications
Tare Weight: 5,700–6,580 kg
Max Payload: 18,300–23,900 kg
Max Gross Weight: 24,000 kg (CSC Certified for International Transport)
Material & Construction
Container Frame: Corten weathering steel, corrugated side panels, rust and corrosion resistant, suitable for multi-scenario transportation by sea and land.
Container Floor: 28mm marine-grade plywood, moisture-proof and pressure-resistant, capable of withstanding frequent forklift operations.
Door Configuration: Full-side multi-hinged doors + standard rear door; each door equipped with 2–3 anti-theft lock rods, rubber seal strips for waterproofing and dustproofing.
Standard Configuration: ISO standard corner castings, supporting stacking, lifting, and trailer transport, globally compatible at all ports.
Full-Side Access, Efficient Loading & Unloading
The pillarless design enables unobstructed 12-meter full-side access. Extra-long pipes, large machinery, and full-pallet cargo can be loaded/unloaded directly from the side, with forklifts driving straight in and out without secondary handling. Loading/unloading efficiency is over 3 times higher than standard containers.
High Cube & Large Capacity, High Space Utilization
With a 9ft 6in high cube design, it offers an internal clear height of 2,700mm and a volume of over 72m³-accommodating approximately 15% more cargo than a standard 40ft dry van. Ideal for storage and transport of bulk or high-volume goods.
Dual-Door Design, Versatile & Multi-Functional
Dual-side and rear door operation supports "side-loading/rear-unloading" or simultaneous two-way handling. It meets cargo access needs across diverse scenarios and adapts to multi-process operations.
Sturdy & Durable, Multi-Scenario Adaptability
Constructed from Corten weathering steel for superior rust and corrosion resistance, with a robust stackable structure. Excellent sealing performance ensures waterproofing, dustproofing, and anti-theft protection, suiting both long-haul transport and long-term outdoor storage.
High Modifiability, Wide Applications
The regular, unobstructed interior facilitates ventilation, lighting, and electrical modifications. It is an ideal base material for container shops, exhibition halls, modular offices, and temporary camps, combining practicality with creative potential.
Purchase Assurance
Compliance & Certification: Each container is fitted with a CSC approval plate, fully complying with international maritime standards and valid for global shipping.Quality Control: Strict inspection procedures for welding, rust prevention and sealing are enforced. Every unit undergoes watertight and weatherproof testing before delivery.
